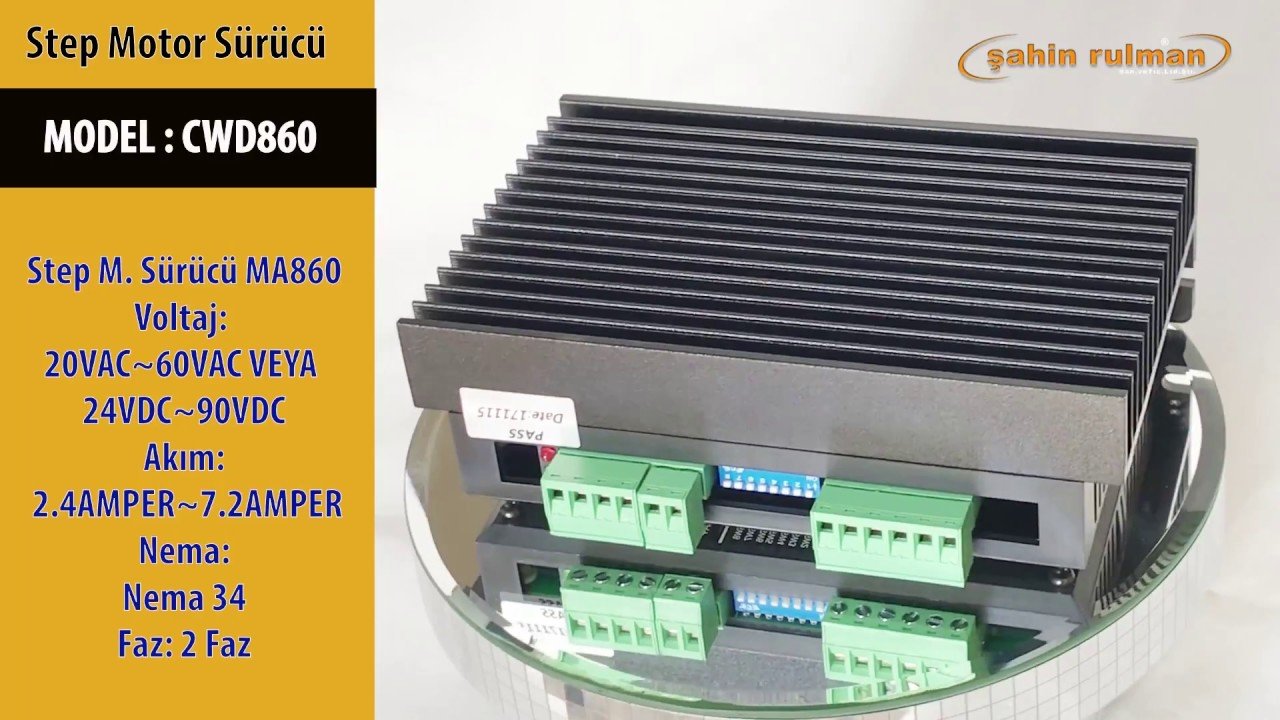

Stepper Motor Driver MA860

Stepper Motor Driver Voltage: 20VAC~60VAC OR 24VDC~90VDC

Stepper Motor Driver Current: 2.4AMPER~7.2AMPER

Stepper Motor Driver Nema: Nema 34

Stepper Motor Drive Phase: 2 Phase

Product Code: Stepper Motor Driver CWD860

Click to Review Stepper Motor Driver CWD860

You can download the datasheet file by clicking on the product code.

2 Phase Stepper Motor Driver CWD860

• Jumper settings must be made with the drive switched off for safety.
• In the ampere settings, the ampere of the motor will be matched to the driver RMS setting.
• The metal part of the panel where the drives are located must be EARTHED. Before giving Amperes to the drives, a voltage control must be done by entering a measuring device between NEUTRAL and EARTH cables. The ideal situation is zero volts.
• In PLC, Arduino, Axis control card or specially designed cards, PULSE and DIR signals must be sent as 5V. In devices with signal outputs above 5 Volts, resistance must be entered into the PULSE and DIR signal output cables to be distributed individually in minus or plus driving. For example, the resistance required for 24Volt output is 1.8KΩ.
